Product Details
＋
Description:
Outdoor LED battens with a robust IK08 vandal resistant grade. They have a HACCP food grade rating. Models are available with smart technology Intellisensor and Ecoswitch to minimise waste. Emergency models are rated IP54.
Features:
- Outdoor LED batten with weather resistant UV stabilised polycarbonate body and diffuser
- Tritone colour temperature selection

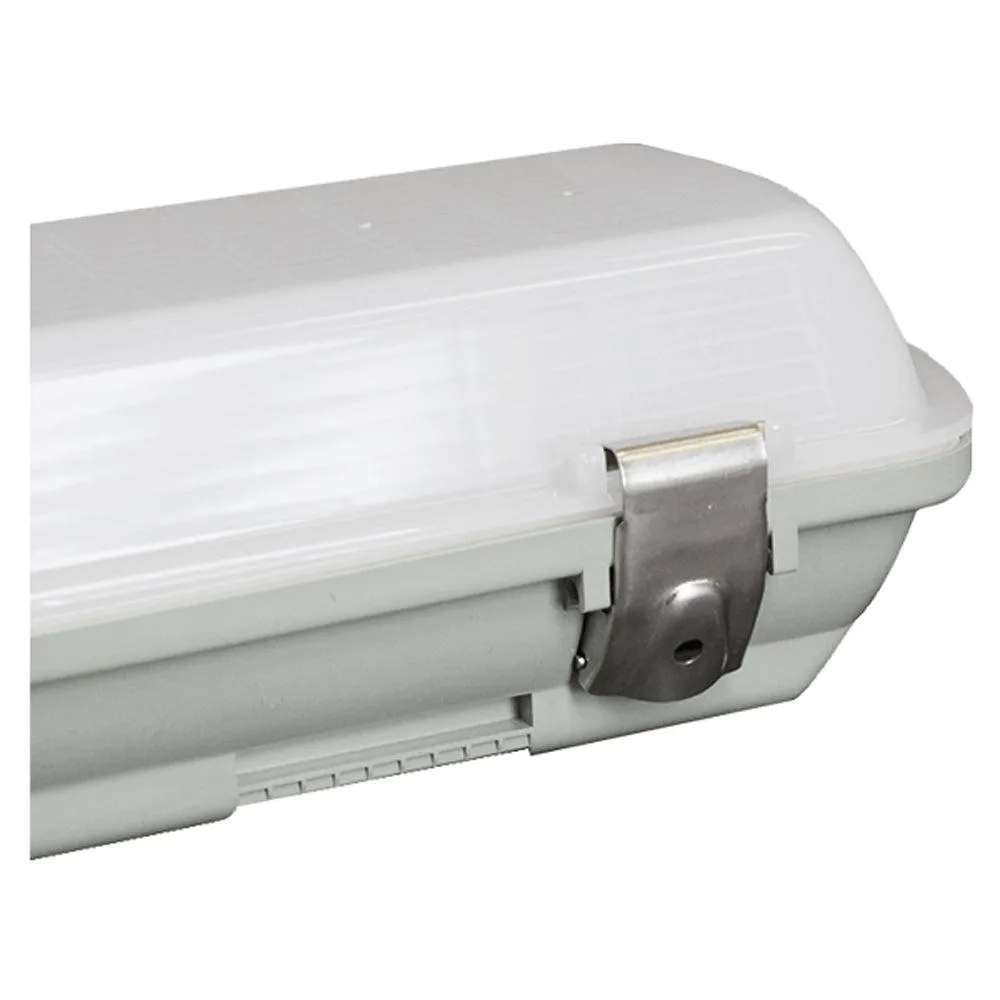

- Stainless steel tamper proof clips for public spaces
- Dual intensity selection with Ecoswitch on some models
- Intellisensor occupancy sensor available on some models

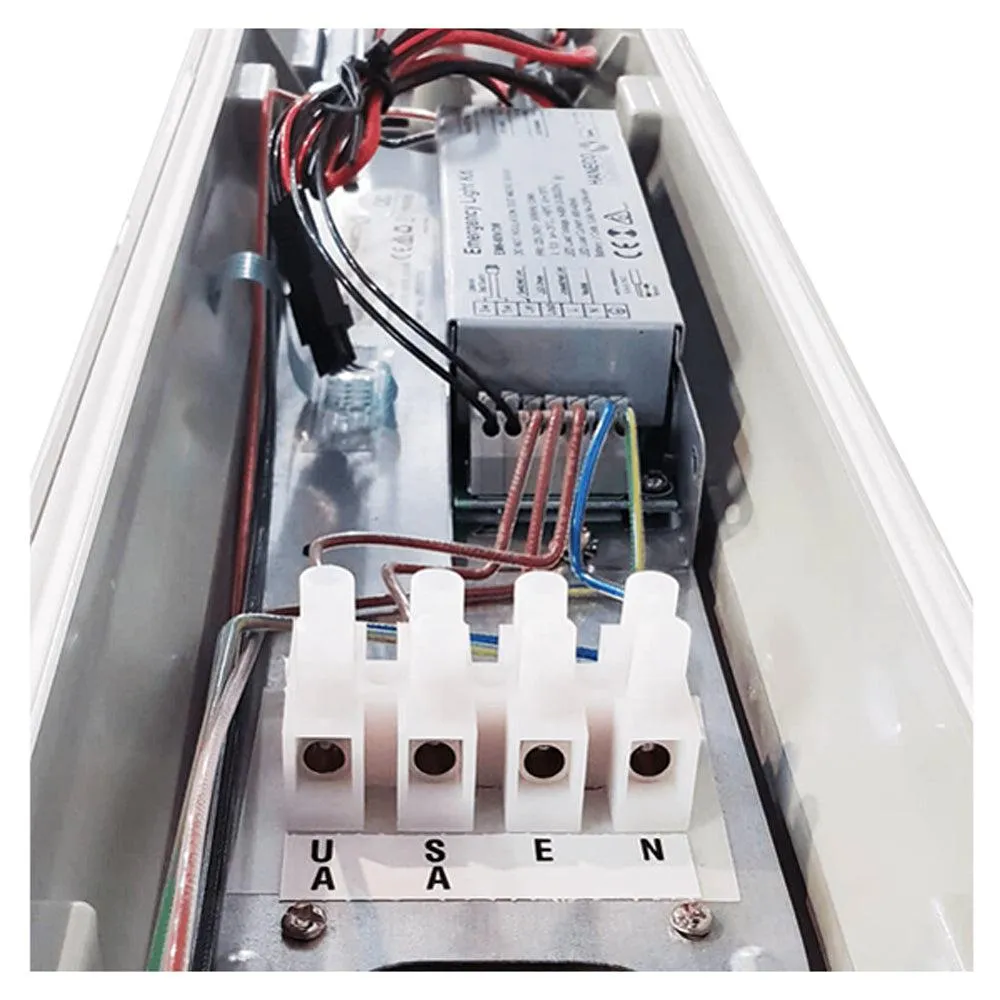

- Three hour self charging back-up Emergency battery (Ni-Cd) on some models
- PG16 cable entry with optional knockout
- IK08 vandal resistant
- Some models are approved for VEET, REES & IPART
- 1 & 2m suspension kits available
- 5 year warranty (1 year warranty on battery in emergency models)
Specification:
- Impact Rating: IK08
- Beam Angle: 120°
- CRI: >80
- Non-Dimmable
- Expected Lifetime: 50,000hr
Applications:
Outdoor, industrial, sports halls, public amenities
| Code | Size | Feature | CCT | Watt | Lumen | lm/W | |
|---|---|---|---|---|---|---|---|
| 2001164 | 600mm | Tritone | 4000k 5000k 6500k |
20w 20w 20w |
1850lm 1990lm 1850lm |
93lm/W 100lm/W 93lm/W |
|
| 2001165 | 600mm | Tritone, Emergency | 4000k 5000k 6500k |
20w 20w 20w |
1850lm 1990lm 1850lm |
93lm/W 100lm/W 93lm/W |
|
| 2001168 | 1200mm | Tritone – Ecoswitch REES, VEET, IPART |
4000k 5000k 6500k |
20w-40w 20w-40w 20w-40w |
2230lm-4090lm 2250lm-4410lm 1970lm-4050lm |
111-102lm/W 113-110lm/W 98-101lm/W |
|
| 2001066 | 1200mm | Tritone – Ecoswitch REES, VEET, IPART Emergency |
4000k 5000k 6500k |
20w-40w 20w-40w 20w-40w |
2230lm-4090lm 2250lm-4410lm 1970lm-4050lm |
111-102lm/W 113-110lm/W 98-101lm/W |
|
| 2001068 | 1200mm | Tritone, Intellisensor, Emergency |
4000k 5000k 6500k |
40w 40w 40w |
4085lm 4411lm 4049lm |
102lm/W 110lm/W 101lm/W |
|
| 2001170 | 1500mm | Tritone | 4000k 5000k 6500k |
60w 60w 60w |
5600lm 6000lm 5700lm |
93lm/W 100lm/W 95lm/W |
|
